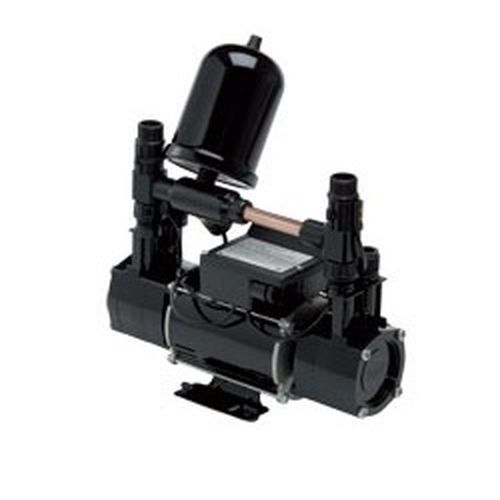

Stuart Turner 46533 Showermate Universal 2.6 Bar Twin Negative Head Shower Pump

£636.43 £530.36
SKU
168023
Manufacturer Code: 46533

Stuart Turner

Stuart Turner 46533 Showermate Universal 2.6 Bar Twin Negative Head Shower Pump

A Showermate Universal 2.6 bar twin pump is designed to boost the incoming hot and cold water supply to an individual shower, bath / shower mixer, or tap in negative head plumbing systems.

Technical Specification:

The Pump

  • Flow switch sensitivity: approx. 0.8 l/min
  • Max. inlet head: 6 metres
  • Plumbing connection: G ¾ male
  • Flexible hose: G ¾ female x 15 mm push-in c/w isolating valves on inlet hoses (2) and plain hoses on outlet (2)
  • Anti vibration feet: Yes
  • WRAS compliant: Yes

The Motor

  • Power Supply: 230/1/50
  • Enclosure rating: IP22
  • Motor: Induction permanent capacitor auto resetting protective thermotrip
  • Power consumption: 610 Watts
  • Full load: 2.5 Amps
  • Fuse rating: 5 Amps
  • Pre wired: Yes
  • Rating: Int (S3) 30 mins on/30 mins off @ 9 l/min
  • Gross weight (packed): 7.4 Kg
  • 1 Year Guarantee: Can be extended free to 2 years -United Kingdom only
  • Part Number: 46429 (United Kingdom specification only)

Click below to download Stuart Turner Showermate Universal installation and technical information

(Opens new window)

Stuart Turner Showermate Eco Data Sheet Data Sheet Stuart Turner Showermate Brochure Brochure Stuart Turner Installation Instructions Installation Guide
