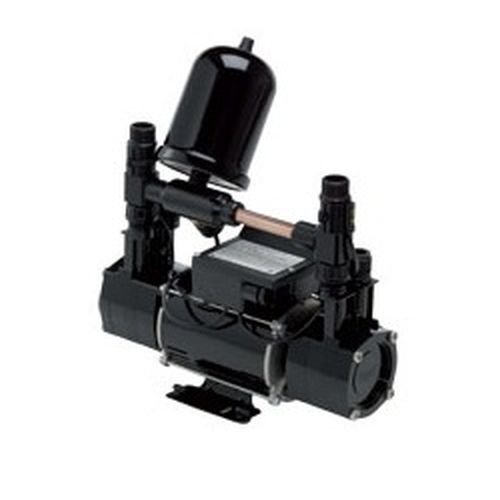

Stuart Turner 46532 Showermate Universal 1.8 Bar Twin Negative Head Shower Pump
Stuart Turner 46532 Showermate Universal 1.8 Bar Twin Negative Head Shower Pump
A Showermate Universal 1.8 bar twin pump is designed to boost the incoming hot and cold water supply to an individual shower, bath / shower mixer, or tap in negative head plumbing systems.
Technical Specification:
The Pump
- Flow switch sensitivity: approx. 0.8 l/min
- Pressure Switch: Yes
- Max. inlet head: 6 metres
- Plumbing connection: G ¾ male
- Flexible hose: G ¾ female x 15 mm push-in c/w isolating valves on inlet hoses (2) and plain hoses on outlet (2)
- Anti vibration feet: Yes
- WRAS compliant: Yes
The Motor
- Power Supply: 230/1/50
- Enclosure rating: IP22
- Motor: Induction permanent capacitor auto resetting protective thermotrip
- Power consumption: 440 Watts
- Full load: 1.9 Amps
- Fuse rating: 5 Amps
- Pre wired: Yes
- Rating: Int (S3) 30 mins on/30 mins off @ 9 l/min
- Gross weight (packed): 6.6 Kg
- 1 Year Guarantee: Can be extended free to 2 years -United Kingdom only
- Part Number: 46532 (United Kingdom specification only)
Click below to download Stuart Turner Showermate Universal installation and technical information
(Opens new window)
Data Sheet Brochure Installation Guide Write Your Own Review
