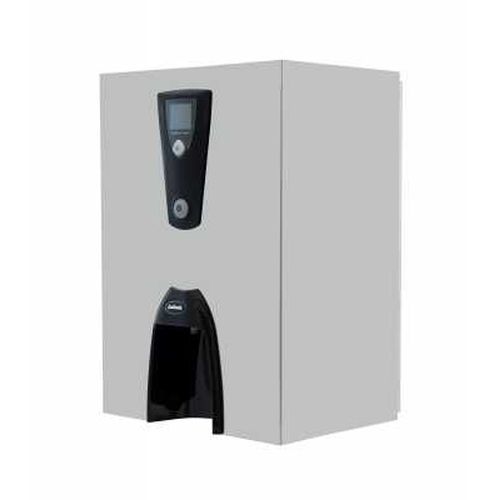

Instanta Sureflow Touch Wall Mounted 6Ltr Push Button (Db600-W) WMS6PB

The new SureFlow Touch is the ideal option for self-service, allowing the option for a push and hold dispense or a timed filled measure to a specific size vessel.

Features & Benefits

• Choice of water dispense; either standard push & hold (on demand) or if preferred, programmable metered/timed dispense
• Top-up feature allows user to top-up the drink following a measured dispense. The screen continues to flash for 5 seconds during which time the drink can be topped up. After 5 seconds, it reverts to timed dispense mode.
• Quick and easy to program the metered dispense using memory function on set-up.
• LCD screen displays a prominent Caution Hot Water safety message which flashes whenever hot water is dispensed.
• Electrical mains cord and water inlet coupling are underneath the boiler (provides choice of service connections from under-counter or above counter).
• Complete with fixing points in the case, for an optional bracket & spill tray.

Installation

As per instructions supplied.

Plumbing

Designed for direct connection to a potable cold water supply using the fittings supplied. An isolating valve should be installed between the supply and the heater. These wall mounted boilers have a rear connection and overflow and requires two bar incoming water pressure.

Electrical

Wire into double-pole fused spare (minimum cable size: 1.5mm). Use of an ELCB is recommended

Construction

• Premium grade stainless steel
• Well insulated for minimal heat loss & energy use
• Low voltage switching

Downloads
Download WMS6PB Information Pack
Download WMS6PB Specification Sheet
Download WMS6PB User Manual
