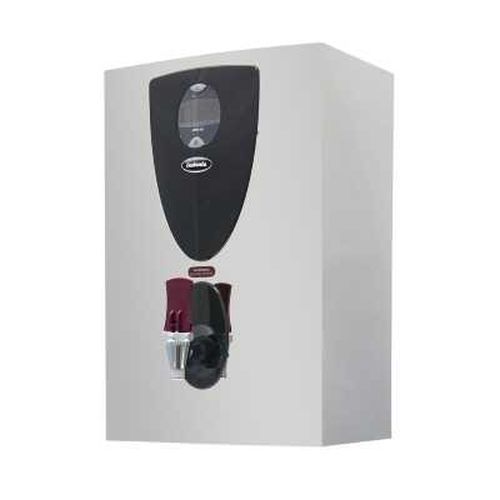

These high performance wall mounted boilers are the perfect solution for hot drink requirements. Designed to last, the small and medium models are available in impact resistant thermoplastic or stainless steel cases.
Features and Benefits
Integral 7 day programmable timer
Programmable filter change indicator
Energy Saving ECO mode
Electronic temperature control, programmable between 80C - 98C
Comprehensive diagnostics system
As per instructions supplied.
Designed for direct connection to a potable cold water supply using the fittings supplied. An isolating valve should be installed between the supply and the heater. These wall mounted boilers have a rear connection and overflow and requires two bar incoming water pressure.
To be connected to 230 volt 13 amp or 30 amp (6kW) supply.
Stainless steel or impact resistant thermoplastic case.
Stainless steel heating chamber.
Low voltage switching.
2 safety cut-outs.
|Tap Depth (mm)||80|
|Power loading (kW)||3|
|Heat-up time (mins)||31|
|Recovery Rate (litres)||0.5|
|Rapid Draw-Off (litres)||15|
|Rapid Draw-Off (cups)||90|
|Hourly Output (litres)||28|
|Hourly Output (cups)||342|
|Stand by Loss (kW/h)||0.12|
