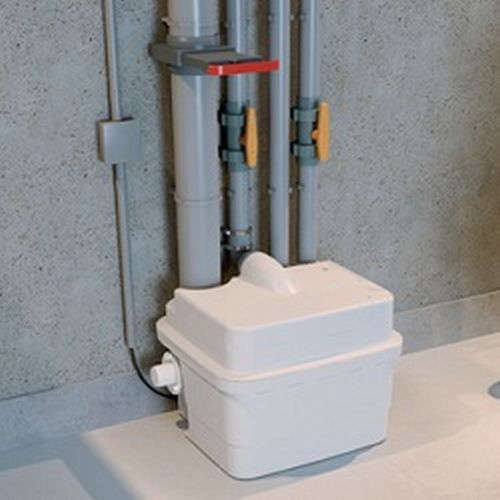

Saniflo Sanicubic Waste Water Pump

Sanicubic Waste Water Pump

Each of the pumps is fitted with a high-performance maceration system.
The 2 pumps operate alternately. In the event of inflow overload, both motors run at the same time (or if one of the pumps is faulty, the other one
takes over).

The SANICUBIC tank is fitted with 2 dip tubes; one tube controls motor operation, and the other one controls the alarm system.
- Long pickup tube (normal operation): as soon as the waste water level in the tank reaches the triggering point in the long tube, the pumping system starts up.
- Short pickup tube (inflow overload operation): if the waste water level in the tank reaches the upper point, a contact is closed and the auxiliary pumping system is triggered.

The contact also sets off an audible and visual alarm. The general alarm LED on the SANICUBIC control panel switches to red. The system sends a high-frequency overload signal to the remote alarm unit.
The SANICUBIC is fitted with a remote alarm module that transmits a visible and audible alarm (HF link).
