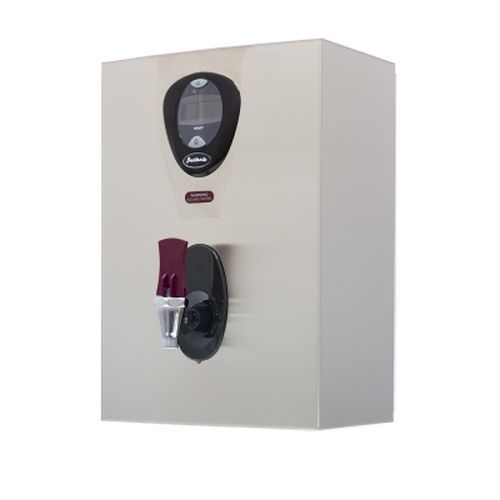

Instanta Sureflow Plus Wall Mounted 3Ltr (Wm3Ss) WMSP3
Wall Mounted Auto-Fill
Features and Benefits
Integral 7 day programmable timer
Programmable filter change indicator
Electronic temperature control, programmable between 80C - 98C
Comprehensive diagnostics system
Installation
As per instructions supplied
Plumbing
Designed for direct connection to a potable cold water supply using the fittings supplied. An isolating valve should be installed between the supply and the heater. These wall mounted boilers have a choice of connection through rear or from beneath and require 2 bar incoming water pressure.
Electrical
To be connected to 230 volt 13 amp
or 30 amp (6kW) supply.
Construction
Stainless steel or impact resistant thermoplastic case.
Stainless steel heating chamber.
Low voltage switching.
2 safety cut-outs.
Approvals
WRAS approved.
Downloads
Download SureFlow Premium Wall Mounted Installation & User Manual
Download WMSP3 Information Pack
Download WMSP3 Specification Sheet
| Height (mm) | 414 |
|---|---|
| Width (mm) | 314 |
| Depth (mm) | 215 |
| Tap Depth (mm) | 90 |
| Power loading (kW) | 3 |
| Heat-up time (mins) | 11 |
| Recovery Rate (litres) | 0.5 |
| Rapid Draw-Off (litres) | 3 |
| Rapid Draw-Off (cups) | 18 |
| Hourly Output (litres) | 28 |
| Stand by Loss (kW/h) | 0.1 |
