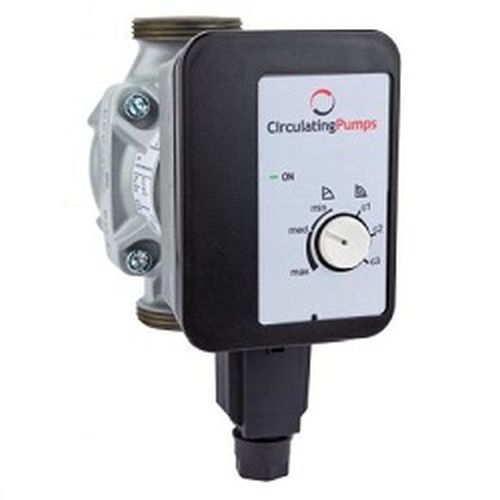

Circulating Pumps CP60 High Efficiency Circulator Pump 6 Meter Head 4172631

Circulating Pumps CP60 High Efficiency Circulator Pump 6 Meter Head 4172631

High-efficiency pump CP60, electronically controlled. A maintenance free glandless circulation pump with threaded connection. Permanent magnet EC motor with integrated electronic control giving infinitely variable differential pressure control. Can be used for all heating and air conditioning applications (-10°C to +95°C). Mode of control can be selected to suite radiator/under floor heating applications. LED ON / OFF indicator.

Technical Data:

• Approved fluids: Heating water according to VDI 2035 Water/glycol mixtures (max. 1:1)

• Volume flow: Up to 3.5 m³/h
• Delivery head: Up to 6m
• Temperature range: -10 °C to +95 °C
• Max. ambient temp: +40°C
• Operating modes: Δp-v for variable differential pressure 3 speed mode
• Rated pressure: PN 6
• Protection class: IP X2D
• Mains connection: 1~230 V, 50/60 Hz
