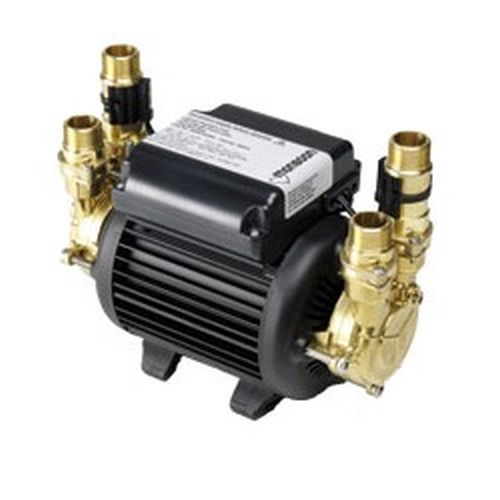

Stuart Turner 46506 Monsoon Standard 1.5 Bar Twin Positive Head Shower Pump

£386.10 £321.75
SKU
168007
Manufacturer Code: 46506

Stuart Turner

Stuart Turner 46506 Monsoon Standard 1.5 Bar Twin Positive Head Shower Pump

The Monsoon Standard 1.5 bar twin pump is designed for installation into vented systems to pump both the hot and cold water supply - boosting both equally.

They can be used to:

  • Boost hot and cold water services to the complete home, bathroom, kitchen or cloakroom.
  • Boost hot and cold water supplies to a high performance shower system.

Technical Specification:

The Pump

  • Hot & cold inlet strainers: Yes
  • Stuart hard face mechanical seal: Yes
  • Flow switch sensitivity: approx. 0.6 l/min
  • Maximum inlet head: 14 metres
  • Plumbing connection G ¾" male
  • Flexible hose: G ¾" female x 22 mm push-in c/w isolating valves x 305 mm long
  • Anti vibration feet: Yes
  • WRAS approved: Yes

The Motor

  • Power Supply: 230/1/50
  • Enclosure rating: IPX4
  • Motor: Induction type, permanent capacitor, auto resetting protective thermotrip
  • Power consumption: 345 Watts
  • Full load: 1.5 Amps
  • Fuse rating: 5 Amps
  • Pre wired: Yes
  • Rating: Continuous (S1) @ 9 l/min and above
  • Gross weight (packed): 8.4 Kg
  • 3 Year Guarantee: Can be extended free to 5 years -United Kingdom only
  • Part Number: 46506 (United Kingdom specification only)

Click below to download Stuart Turner Monsoon Standard installation and technical information

(Opens new window)

Stuart Turner Monsoon Standard Data Sheet Data Sheet Stuart Turner Monsoon Brochure Brochure Stuart Turner Installation Instructions Installation Guide
