Stuart Turner 46502 Showermate Eco 1.5 Bar Twin Positive Head Shower Pump

£167.78 £139.82
SKU
168016
Manufacturer Code: 46502

Stuart Turner

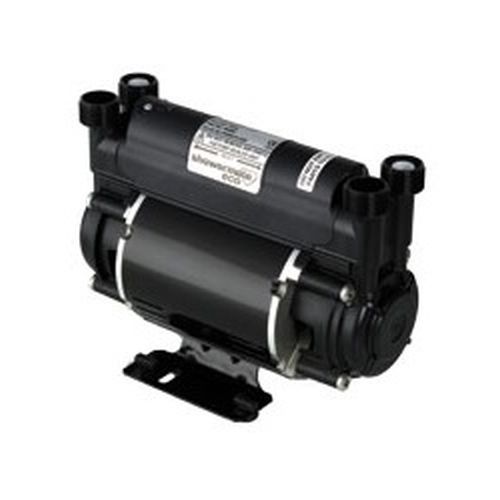

Stuart Turner 46502 Showermate Eco 1.5 Bar Twin Positive Head Shower Pump

A Showermate eco 1.5 bar twin pump is designed to boost the incoming hot and cold water supply to an individual shower, bath / shower mixer, or mixer tap.

Technical Specification:

The Pump

  • Flow switch sensitivity: approx. 0.8 l/min
  • Maximum inlet head: 10 metres
  • Plumbing connection: 15 mm push-in
  • Flexible hose: 4 off 15 mm push-in x 200 mm long
  • Anti vibration feet: Yes
  • WRAS compliant: Yes

The Motor

  • Power Supply: 230/1/50
  • Enclosure rating: IP22
  • Motor: Induction permanent capacitor auto resetting protective thermotrip
  • Power consumption: 385 Watts
  • Full load: 1.7 Amps
  • Fuse rating: 5 Amps
  • Pre wired: Yes
  • Rating: Int (S3) 30 mins on/30 mins off @ 9 l/min
  • Gross weight (packed): 4.0 Kg
  • 1 Year Guarantee: Can be extended free to 2 years -United Kingdom only
  • Part Number: 46502 (United Kingdom specification only)

Click below to download Stuart Turner Showermate Eco installation and technical information

(Opens new window)

Stuart Turner Showermate Eco Data Sheet Data Sheet Stuart Turner Showermate Brochure Brochure Stuart Turner Installation Instructions Installation Guide
