Saniflo 6101 Sanicubic 1

£1,134.79 £945.66
SKU
164026

Manufacturer Code: 6101

Saniflo

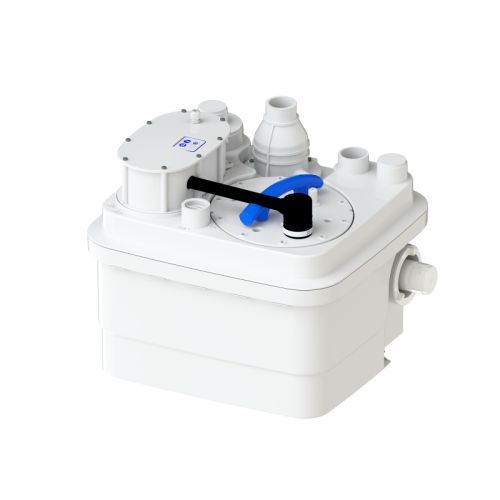

Saniflo 6101 Sanicubic 1

The Sanicubic 1 is a robust macerator pump that has been designed for the discharge of waste from up to two WCs plus multiple grey water producing appliances in busy business environments or larger domestic situations.



Tough, reliable macerator pump that can take waste from 2 WC’s and multiple appliances.

Idea for busy business environments or larger domestic situations

New design with easily removable motor for servicing and maintenance

Pumps up to 11m vertically or 110m horizontally

The Sanicubic 1 is a tough, reliable macerator pump which is ideal for busy business environments or larger domestic situations. The unit can handle waste water from up to 2 WC’s, a basin, sink, washing machine, dishwasher, shower, bath and bidet. The Sanicubic 1’s new design means the motors are easily removable for servicing and maintenance as is the water level indicator. It has an external hard-wired audio visual alarm. The Sanicubic 1 features integrated non-return valves and the centre heights of inlets is 140mm. It has four inlets and it discharges through 50 mm pipework. It has a working temperature of 35ºC, however it will handle temperatures up to 75ºC for short periods. The Sanicubic 1 has a tank capacity of 32 litres and a flow rate 13m³/h. It cannot be connected to a Building Management System. The Sanicubic 1 comes with a 2 year warranty.

Designed, made and tested in our factory in France and with 60 years of expertise and innovation, the Sanicubic 1 offers you peace of mind and with the back up from our service team there’s never been a better time to install a Saniflo.

Downloadables

Product Sheet

Instructions

Saniflo Catalogue



More Information
Weight (Kg)21 kg (Including Accessories)
Inlet Diameter1 inlet DN 40/50 (Ø ext. 40/50 mm) • 3 inlets DN 40/50/100/110 (Ø ext. 40/50/100/110 mm)
Motor Power1500 W
Electrical Class1
IP RatingIP67
Max Flow Rate13 m³/h
Discharge Pipe DiameterDN40 (Ø ext. 50 mm)
Maximum Incoming Water Temperature70 °C intermittently (max 5 min)
Maximum Recommended Depth11 Metre
Maximum Depth (Q eq 0 L/min)13 Metre
ON/OFF Level140/80 mm
Alarm Level210 mm
Tank Volume32 Litre
