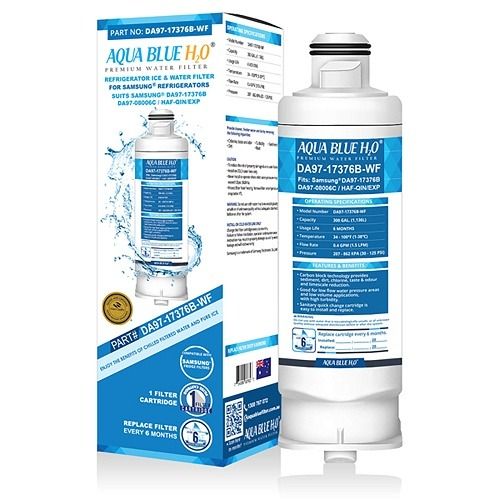

Samsung DA97-17376B Fridge Filter Replacement HAF-QIN/EXP By Aqua Blue H20
Aqua Blue H20 Manufacturer Code: DA97-17376B-WF
Samsung Manufacturer Code: DA97-17376B
This Filter Replaces:
DA97-17376B-WF DA97-17376B, DA97-08006C, HAF-QIN/EXP, EFF-6045A ice maker water filter with twist fitting will fit select models of Samsung refrigerator.
- Buy 2 for £18.91 £15.76 each and save 3%
- Buy 3 for £18.53 £15.44 each and save 5%
- Buy 4 for £17.94 £14.95 each and save 8%
- Buy 5 for £17.56 £14.63 each and save 10%
Samsung DA97-17376B Fridge Filter Replacement HAF-QIN/EXP By Aqua Blue H20
Alternative model for Samsung DA97-17376B Water Filter.
The DA97-17376B-WF is used in French Door and Side-by-Side refrigerators by Samsung and others:
SRF630BFH2, SRF644CDLS, SRF645CDBLS, RF23M8070SG/AA, RF23M8070SR/AA, RF23M8090SG/AA, RF23M8090SR/AA, RF23M8570SG/AA, RF23M8570SR/AA, RF23M8590SG/AA, RF23M8590SR/AA, RF23M8960S4/AA, RF23M8960MT/AA, BRF365200AP/AA, BRF425200AP/AA, RF23M8580SG/SA, SRF676CDBLS, RF22R7551SG/SA, SRF662BFH4, RF23M8080SR/SA, SRF7500SB, SRF7500BB, SRF7300SA, SRF7300BA, SRF9700BFH, SRF9300BFH,RF59A7F10B1, SRF9900BFH, SRF7900BFH, AQP-FF45A, SRFX9550N, SRF9800BFH, SRF9400BFH, SRF7900BFH, SRFX7600W, SRF7500SB, SRF7500BB, SRFX9400BG, SRF7100B, RF71DG9HC3B1SA, RF59A7F10B1/SA, RF59CB67001/SA, RF59A7670SR/SA, RF59A7670B1/SA, RF65DB965322/SA, RF59A70T0B1/SA.
Model Number: DA97-17376B
-
-
- Technology: Carbon Block
- Operating Temperature: 1 - 38°C.
- Pressure: 207 - 862 kPa.
- Flow rate: 1.5 L/min.
- Capacity: 1136 Litres.
-
Water Filter Reduces the Following Health Related Contaminants:
97.60% of Chlorine Taste and Odour
98.40% of Particulates (Class I)
96.60% of Mercury at pH 6.5
88.90% of Mercury at pH 8.5
99.30% of Lead at pH 6.5
99.40% of Lead at pH 8.5
99.99% of Cysts
98.70% of Carbofuran
99.80% of p-Dichlorobenzene
99.00% of Asbestos
96.40% of Benzene
98.60% of Turbidity
Installation Instructions:
1. Shut off the water supply. Then, turn the water filter about 1/4 turn, counter-clockwise.
2. Pull the water filter from the case filter.
*Sometimes, it is hard to disassemble the water filter because impurities in the water cause it to stick. If you are having difficulties, grip the water filter firmly and pull it hard.
*When you pull the water filter, a little water can leak from the opening. This is normal. To minimize the water leaks, keep the filter cartridge horizontal when you pull it.
*To prevent overflow, empty the water tray filter and dry around the filter case.
3. Insert the new filter into the filter case.
4. Push the filter, and then turn it clockwise until it locks.
*The locked symbol should be lined up with the indicator line.
5. Press the alarm/hold 3 sec for Filter Reset The color of indicator changes from red to light off.
6. If you turned off the water supply, turn it back on
A control panel icon on your fridge will flash to remind you it's time to replace your filter We recommend the filter is changed every 6 months or less for optimal water flow.
