McAlpine VSG52T6WH Two Piece Tile Or Stone Floor Gully With NRV White

£87.12 £72.60
SKU
146262

Manufacturer Code: VSG52T6WH

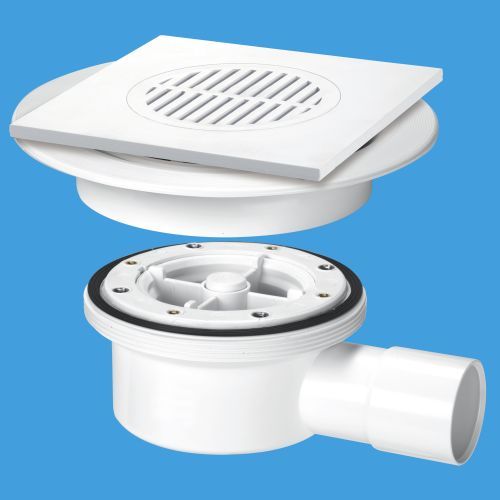

McAlpine VSG52T6WH Two Piece Tile Or Stone Floor Gully With NRV White

Description: McAlpine Two Piece: Valve Shower Gully: 150mm Square White ABS Tile with removable Grid and Securing Screws: 1½" BS EN 1329-1:2000 Solvent Weld Horizontal Outlet

Size: 1½"

Cover Plate: White

Material: ABS

Standard: EN 1253-2:2003

Height: 85mm

Flow Rate: 36 l/min with a 15mm head of water

Additional Info: Valve Shower Gullies are suitable for installation in floors where depth is restricted. The valve acts as a non-return valve, the weight of the water discharge will open the valve and it will reseal when the discharge has ceased thus prohibiting foul air from entering the dwelling. The valve eliminates the release of foul air due to back flow. The valve can be easily removed to facilitate easy cleaning. It is advisable to seek guidance from the local building control department prior to use as there are currently no regulations to cover use of anything other than a water seal trap in domestic drainage systems.

Click below to download McAlpines product brochure and technical information
(Opens new window)
