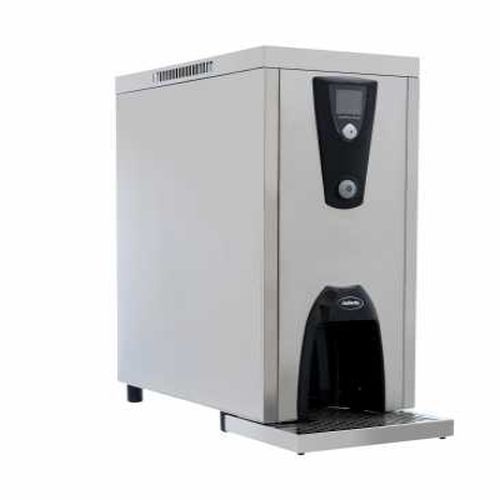

Instanta Sureflow Touch Counter Top Boiler 10Ltr Push Button (Db1000) CTS10PB

The new SureFlow Touch is the ideal option for self-service, allowing the option for a push and hold dispense or a timed filled measure to a specific size vessel.

Features & Benefits

• Choice of water dispense; either standard push & hold (on demand) or if preferred, programmable metered/timed dispense
• Top-up feature allows user to top-up the drink following a measured dispense. The screen continues to flash for 5 seconds during which time the drink can be topped up. After 5 seconds, it reverts to timed dispense mode.
• Quick and easy to program the metered dispense using memory function on set-up.
• LCD screen displays a prominent Caution Hot Water safety message which flashes whenever hot water is dispensed.
• Electrical mains cord and water inlet coupling are underneath the boiler (provides choice of service connections from under-counter or above counter).

Installation

As per instructions supplied.

Plumbing

Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4 BSP) hose supplied. An isolating valve should be installed between the supply and the heater. Rear supply connection and choice of rear or front overflow.

Electrical

Fitted with 1.75 metres of cable and a 13amp moulded plug.

Construction

• Premium grade stainless steel
• Well insulated for minimal heat loss & energy use
• Low voltage switching

Downloads
Download CTS10PB Information Pack
Download CTS10PB Specification Sheet
Download DB500 & DB1000 Installation & User Manual
